Solutions for Elevator Technology

Shaft Copy Systems

Bearingless encoders for external rotor motors

Encoders for gearless/geared motors

 Absolute and safe positioning of the elevator car. Safety functions according to EN 81-20/21/50 can be realized.

Encoders for gearless/geared motors

Bearingless encoders for external rotor motors

Encoders for gearless/geared motors

  Speed measuring with robust incremental encoders for shaft diameters up to 42 mm. The high-resolution single turn encoder is available for optimal drive control.

Bearingless encoders for external rotor motors

Bearingless encoders for external rotor motors

Bearingless encoders for external rotor motors

 Optimal control of the drive with bearingless encoders. 100% integrated sensor solution.

Absolute positioning of the elevator car for travel heights

Shaft copying systems

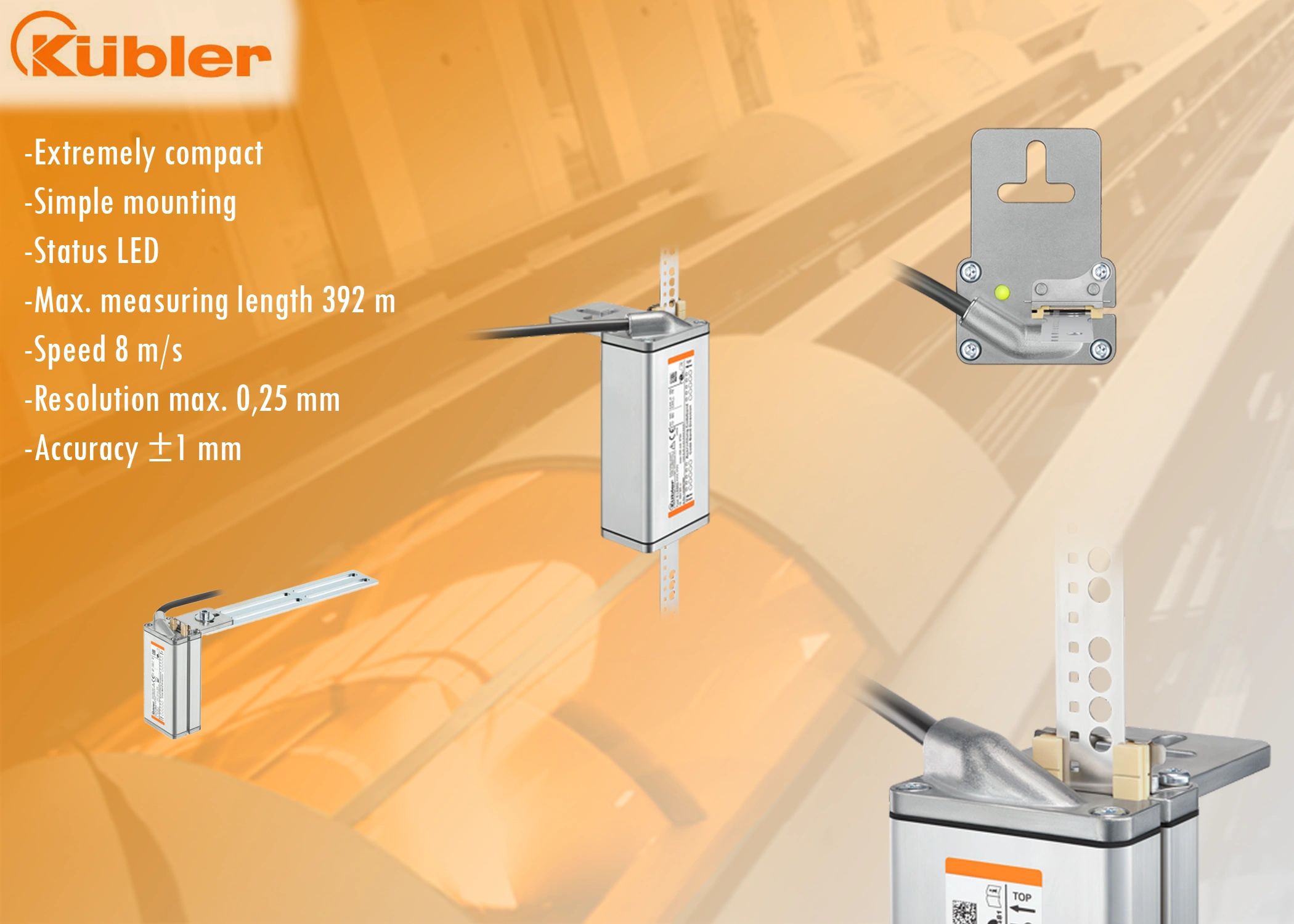

 Extremely compact, robust design. Sensor detects the position of the elevator car 100% slip-free and the Position Supervisor Unit (PSU). The Safe System, consisting of SIL3-certified sensor and matching evaluation unit, elevator and safety functions can be realized according to EN 81-20/21/50 and ASME A17.

Find out more

Elevator Landing Systems

Shaft Copying System - Explained

Installing Elevator Landing Systems

1. Fasten a rail fastener

2. Connect the attaching device and band by means of carabiners.

3. Connect the Band, tension spring and securing band with carabiners.

4. Hook the carabiner into the attachment device.

Online Product Show room
Hello

Welcome To Kuebler Online Product Show Case

Click to Vist Kuebler Online Product Show room

Find out more

Visit The KÜBLER Homepage

KÜBLER Homepage
